THERMAL VACUUM CHAMBER
Access our TVAC in our Space Simulation Test Facility enabling extensive environmental testing for space systems and components
COMING SOON
THERMAL VACUUM CHAMBER (TVAC)
Stellar Space Industries is constructing a state-of-the-art Space Simulation Chamber at our facility on the NL Space Campus next to ESA ESTEC, Noordwijk, in collaboration with the Province of Zuid-Holland.
This new test facility will allow companies and researchers to perform critical environmental testing on space systems and components, including:
Thermal vacuum cycling
Vacuum outgassing
Functional testing in relevant space-like conditions
Designed to support faster development cycles and reduce reliance on international test sites, the chamber will also serve as a platform for collaboration with educational partners and local industry.
Available from Q2 2026!
Sign up to receive updates.
Coming soon.

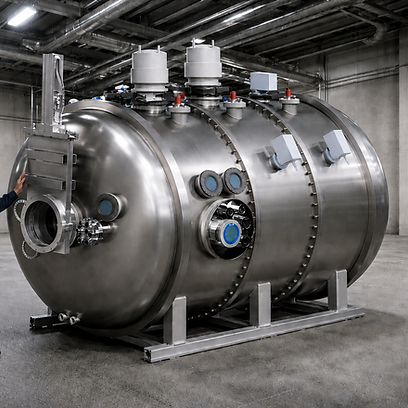

Large Thermal Vacuum Chamber
Technical Specifications
-
Thermal range : -60°C to +150°C
-
Vacuum quality: < 10-5 mbar
-
Pump down time: 2 h to 10-4 mbar
-
Thermal cycling gradient: max. 1K/min
-
~TVAC volume: L1450 x W800 x H800 mm
-
Electrical feed-trough: AWG24 (6 x 50 pins), AWG16 (2 x 8 pins)
-
Data acquisition unit with up to 90 channels
New
Small Thermal Vacuum Chamber
Technical Specifications
-
Thermal range : -60°C to +150°C
-
Vacuum quality: < 10-5 mbar
-
Pump down time: <4 h to 10-5 mbar
-
Thermal cycling gradient: max. 4K/min
-
~TVAC volume: L350 x W350 x H400 mm
-
Electrical feed-trough: 2 x D-sub feedthrough 25-pin)
-
Data acquisition unit with up to 20 channels
Specs.
Booking request.
Availability from Q2-2026!
Exciting news! Our advanced booking system is on the horizon, and we can’t wait to share it with you. Stay connected by following Stellar Space Industries on LinkedIn for the latest updates and announcements.
In the meantime, if you’d like to secure your spot, don’t hesitate to reach out! Simply complete our easy 3-step form, and we’ll get back to you with availability and options.
